DIGITIZER

CAD Data Recovery Software

The Digitizer allows the recovery of design data of unknown assemblies by an electrical analysis with a Condor flying probe test system

  • Automated reconstruction of CAD data
  • SMD and THT components
  • Automatic determination of component types and values (R, C, L, D)
  • Conductor tracks can be also reconstructed manually
  • Innovative technologies for reliable probing
  • Extremely fast - results are available within a few hours
  • Digitizer CAD data recovery is also available as a service

CAD Data Recovery

The Digitizer is a non-destructive tool for helping you restore the design data for circuit boards with older or missing CAD information. It allows you to repair or reproduce even obsolete assemblies.

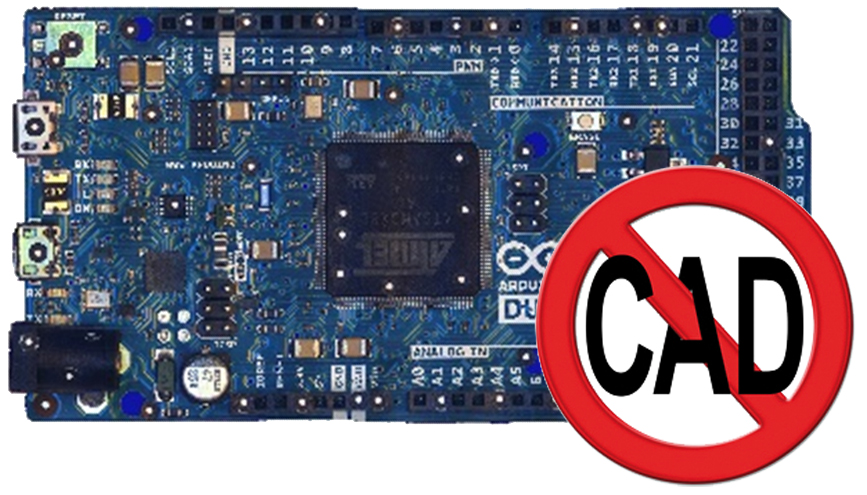

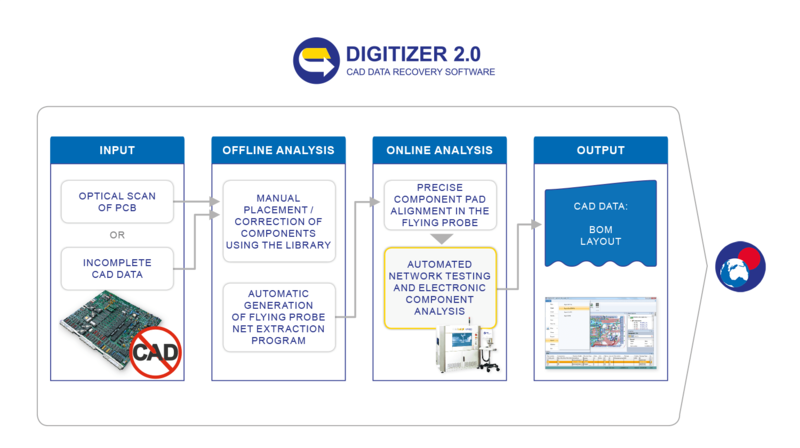

Scan of the assembled PCB

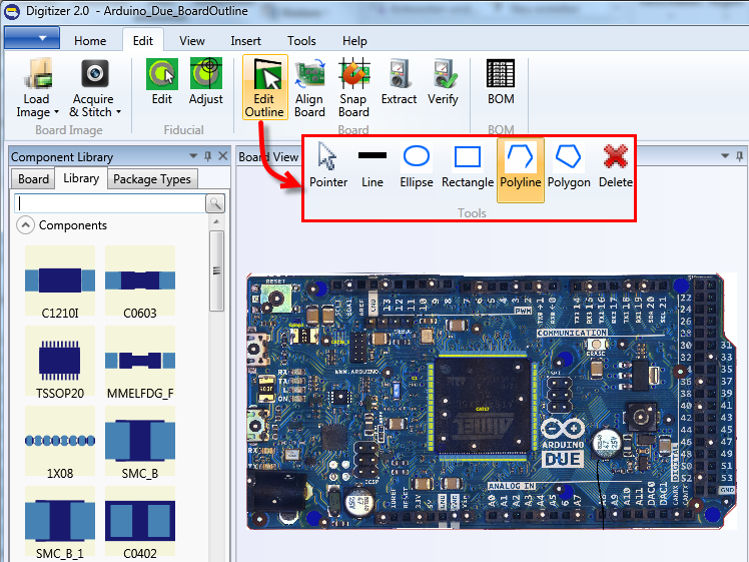

Generate board outline

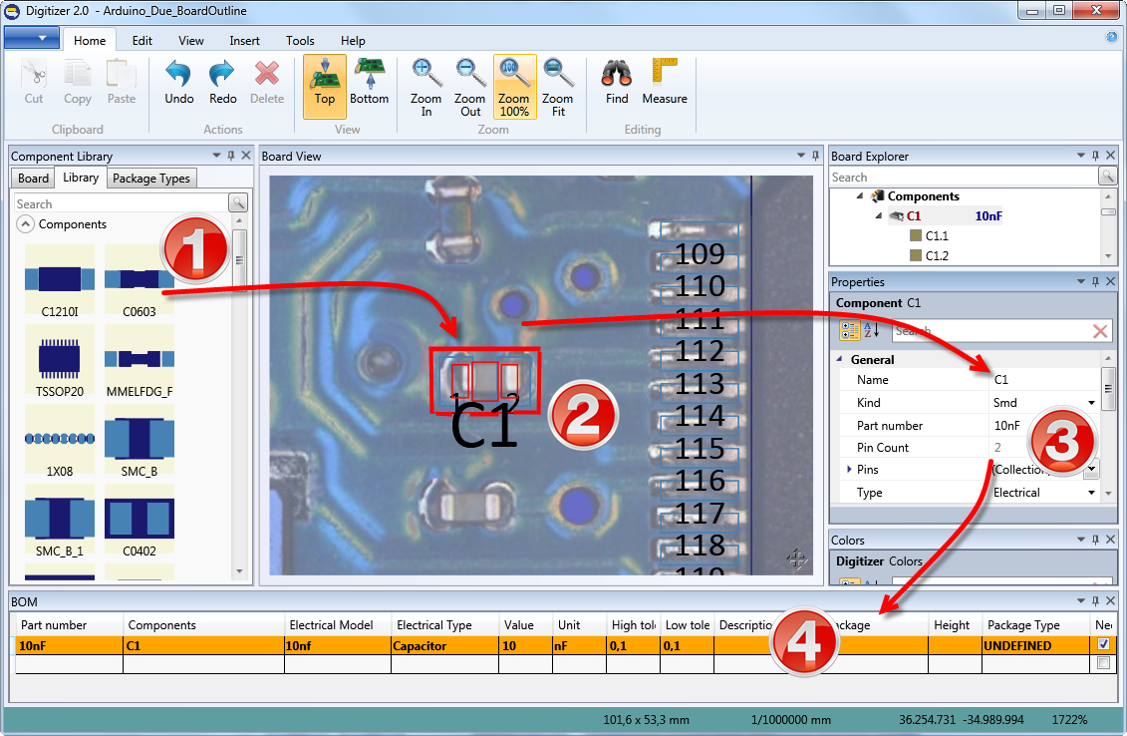

Generate components

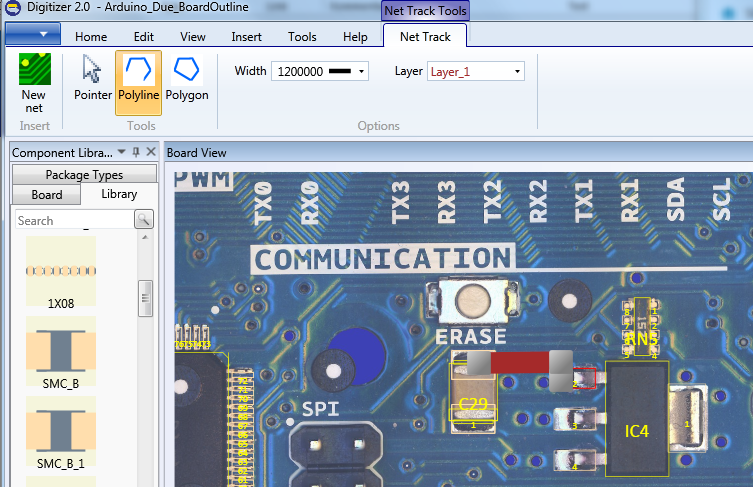

Draw tracks

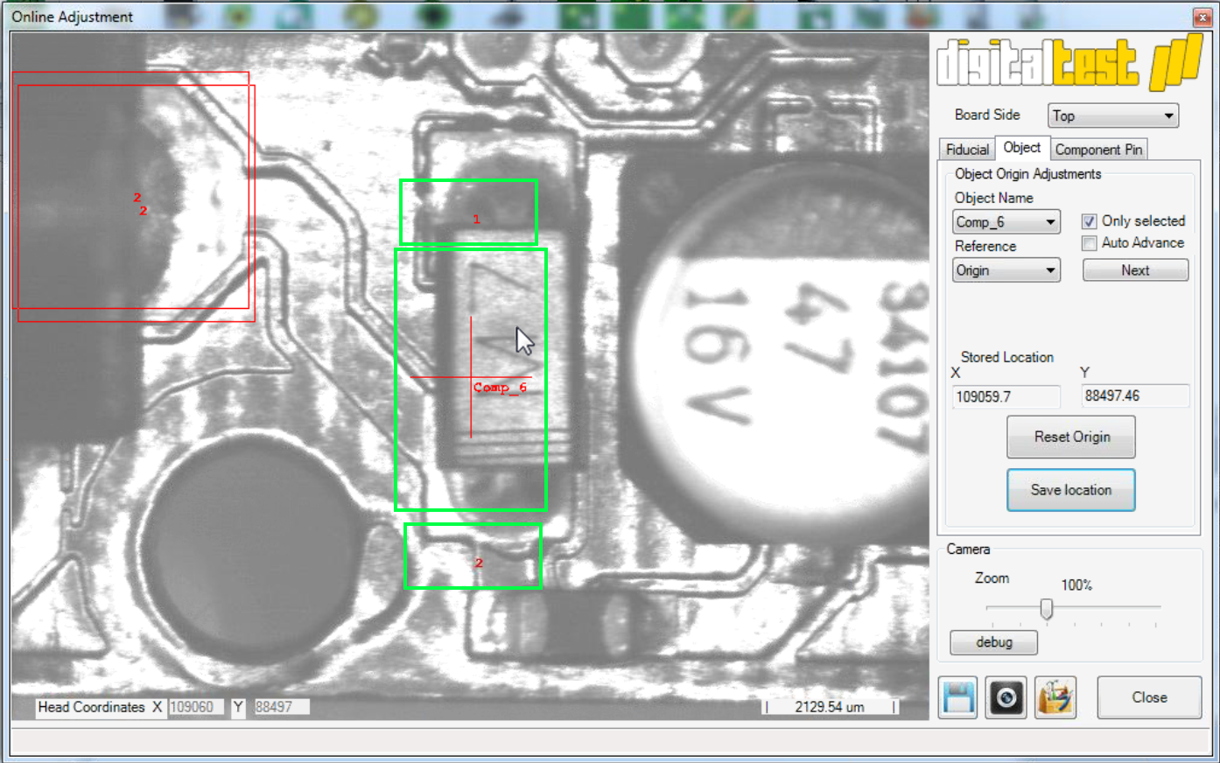

Place assembly in Condor flying probe tester

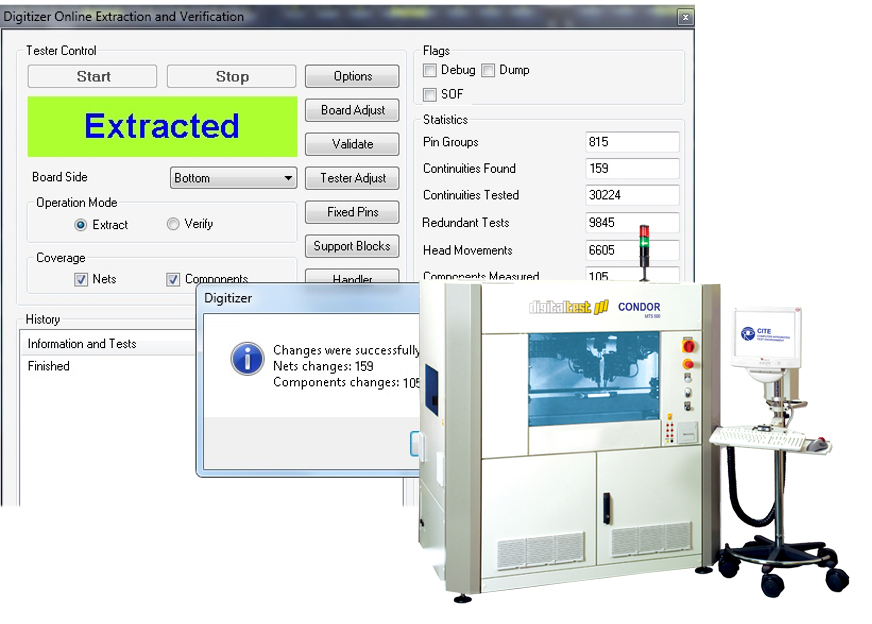

Complete automated network check and electrical analysis of unknown components

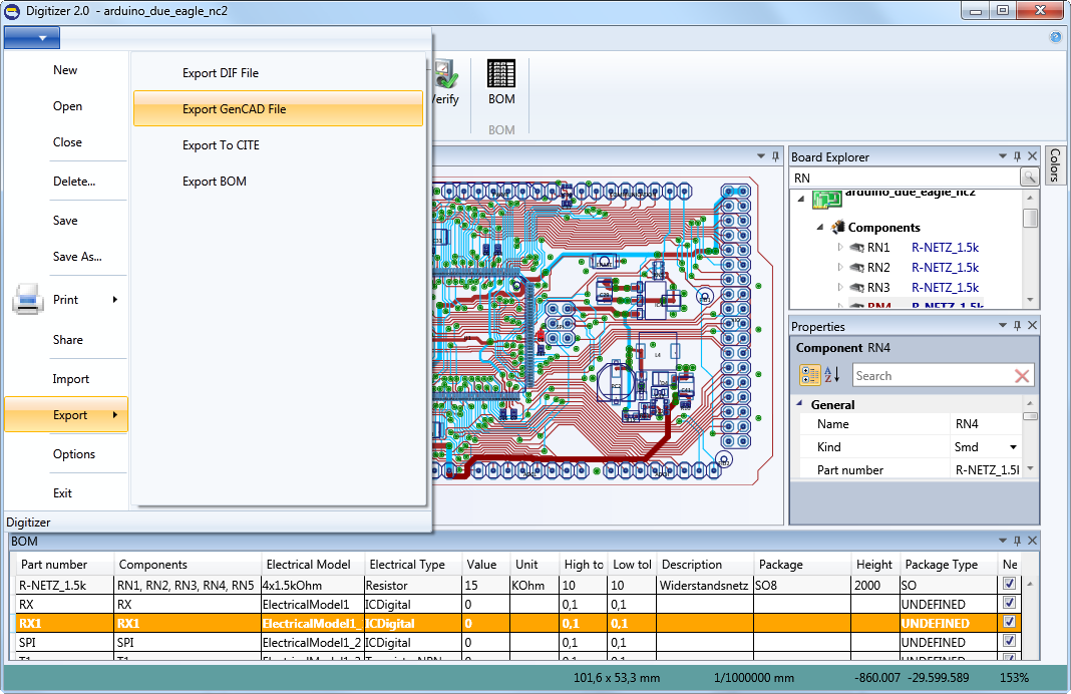

Export der GenCAD, BOM and layout

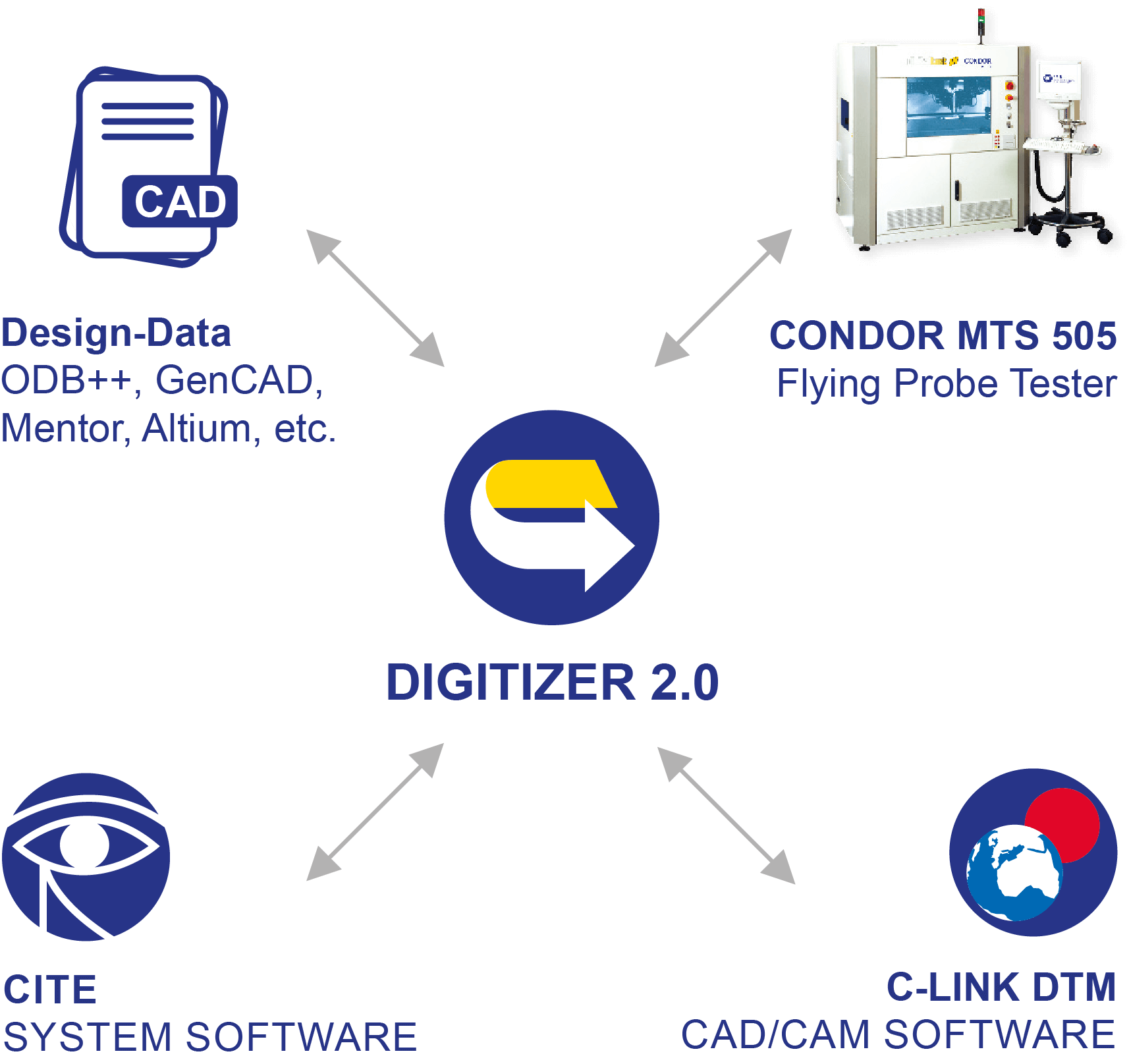

Modular interfaces

You want to know more about our software?

Please contact us
