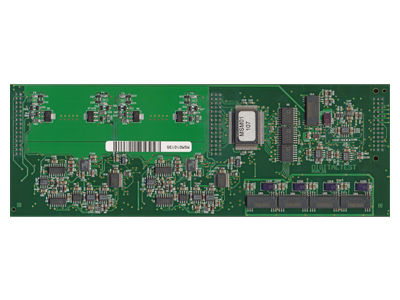

MSM

Stimulate and measure voltages and currents

The MSM measures and stimulates precise voltages and currents through the six bus lines or interface pins.

Features

  • Precision voltage/current sources
  • AC/DC voltage up to 20 kHz
  • Two parallel stimulus channels and one measuring channel per module
  • Current source with programmable voltage limiting
  • Programmable waveforms: sine, square, triangle
  • Programmable DC offset for AC Signals
  • Sense lines for increased accuracy
  • Differential outputs and measuring channels (potential-free)
  • Short circuit protected Outputs
  • Measuring channel: Max. ± 100 V / ± 1 A, resolutions up to 600 nV / 2.4 nA
  • Sources: Max. ± 25 V / ± 200 mA, resolutions up to 33.3 μV / 83.3 nA
